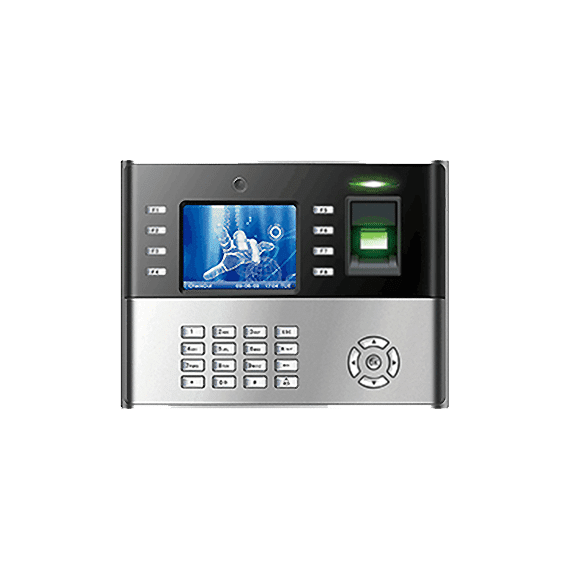

ZKTeco iClock990
iClock990 is a 3.5-inch TFT screen fingerprint Time Attendance & Access Control terminal.
It has a very user-friendly interface with the new firmware and latest core board. Users caneasily manage data via RS232/485, TCP/IP and USB-host. Most importantly, the built-in 2000mAh backup battery can eliminate the trouble of power failure.
The iClock990 has access control interfaces for wiegand-in, wiegand-out, door lock, alarm and door bell.
Capacity
Fingerprint Capacity |
50,000 (1:N) |
ID Card Capacity |
50,000 |
Transactions |
8,00,000 |
Hardware
Sensor |
ZK optical sensor |
Camera |
300.000 pixels camera |
Relay contact |
Electric lock, door sensor, exit button, alarm, Door Bell |
Display
LCD |
TFT Screen 3’5 inch |
LED Indicator |
Green / Red |
Environment
Oper. Temp |
0°-45°C |
Oper. Humidity |
20%-80% |
Power
Communication
Comm. Port |
Ethernet, RS232/485, USB (Host/Client) |
Wiegand |
In&Out |
Fingerprint Algorithm
Type |
ZK Finger 9.0 and 10.0 |
Identification |
<=2 seconds |
Verification |
<=0.5 second |
FRR |
< 1% |
FAR |
<=0.0001% |
Languages
Available |
Most used European languages |
Maximum |
All configured by menu |
Voices |
Allowed. Standard male and female |
Keypad
Type |
buttons keypad |
Function Keys |
8 defined by user |
Dimensions
Dimensions |
158.99×211.54×44.78mm (L x W x D) |
Weight |
1.4kg |
Firmware
O.S |
Linux |
Applications |
T&A and AC |
SDK |
Standalone SDK |
