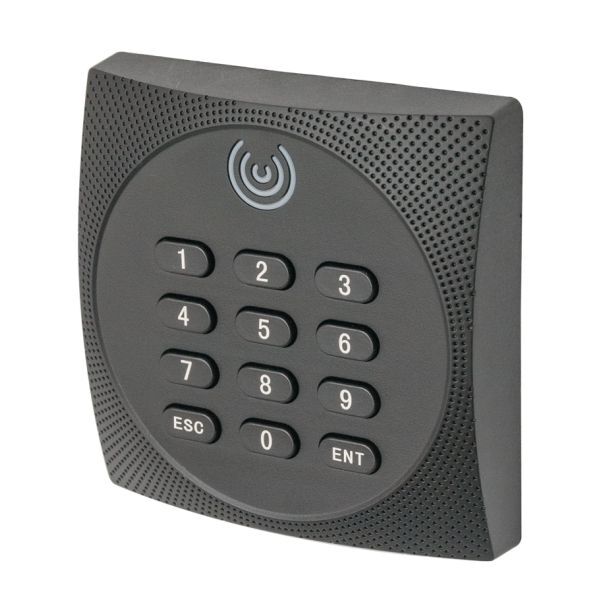

ZKTECO KR-602E Wiegand reader

Call for Price

In stock

ZKTECO KR-602E Bangladesh

  • Easy to install
  • 125KHz Proximity/13.56MHz Mifare Card Reader
  • Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
  • 26/34bit Wiegand (default)
  • Easy to install on Metal Door Frame or Mullion
  • External LED Control
  • External Buzzer Control
  • Indoor / Outdoor Operation
  • Solid Epoxy Injection
  • Waterproof IP64
  • Keypad
  • Reverse Polarity Protection
  • Elegant and robust design

ZKTECO KR-602E Bangladesh

Model KR602E/M
Read Range KR602E Up to 10 CM / KR602M Up to 5 CM
Reading time ( Card ) s 300 ms
Power DC 6-14V / Max.70mA
Input Port 2ea (External LED Control, External Buzzer Control)
Output Card Format 26bit Wiegand (E) 34bit Wiegand (M)
LED indicator 2 Color LED Indicators (Red and Green)
Beeper Yes
Operating temperature -20° to +65°C
Operating Humidity 10% to 90% (relative humidity non-considered)
Color Black and grey
Material ABS+PC with texture
Dimension: (WxHxT) cm 8.6×8.6×2
Weight 150g
Index of Protection IP64
